82 SERIES SYSTEM WINDOW

0.00



Product description:

  • Reinforced wall thickness design has higher safety performance, higher wind pressure resistance
  • The corner cleat injection process not only increases the structural stability of the window, but also improves the 5 major performance of the window.
  • Three seals with isothermal perpendicular lines for excellent thermal insulation performance
  • Adopting 304 stainless steel high-transparency mesh, provides better ventilation and visual effect
  • Three glass and two chambers can be selected to effectively enhance sound insulation, heat preservation and thermal insulation performance.
  • Reinforced center column design provides stable support for oversized glass, which is more resistant to wind pressure and safer.
SKU: N/A Categories: ,
Description

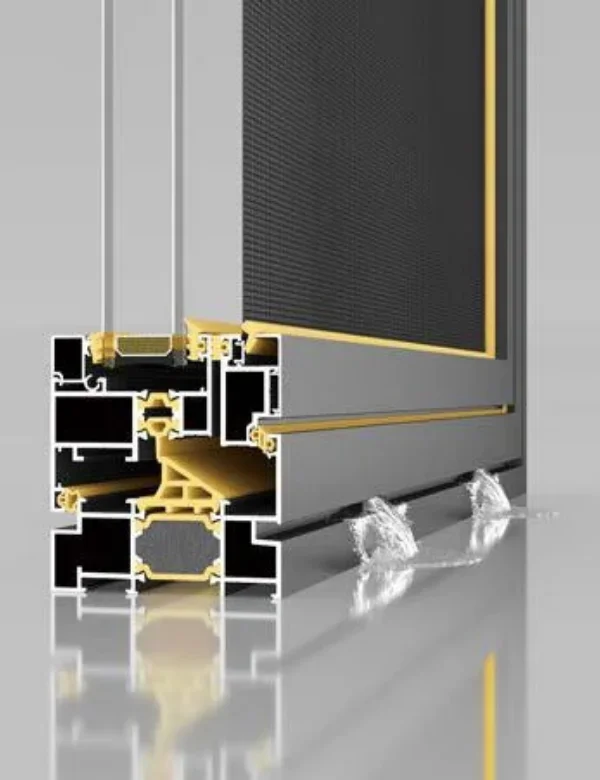

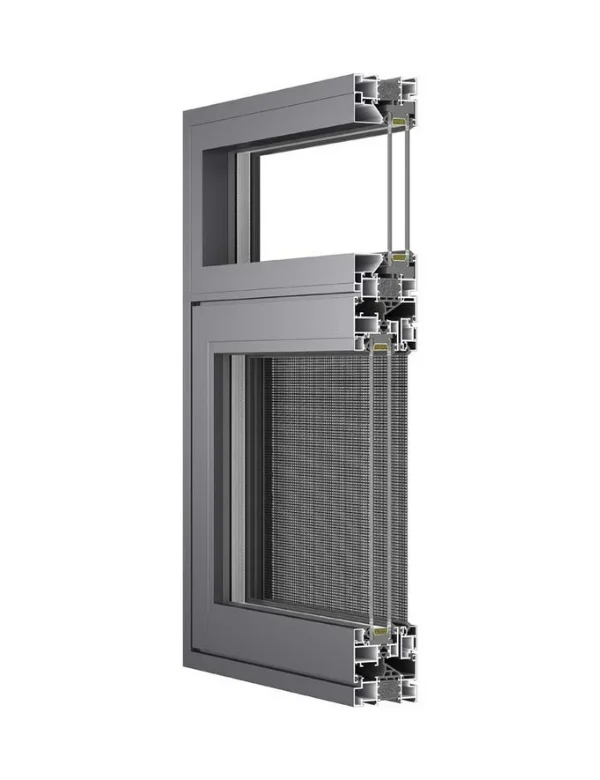

Offers an 82mm depth profile engineered for residential and commercial requirements. It integrates flush sealing technology and German hardware for structural integrity. The construction prioritizes watertightness and acoustic reduction.

Additional Information
Frame Thickness

1.8mm

Reinforced Thickness

1.8mm

Sash width

500mm-750mm

Sash height

800mm-1400mm

Glass Specification

5+20A+5 double tempered insulating glass

Heat insulation strip

30mm

Insulation Performance

Level 6

Wind pressure resistance performance

Level 8

Watertightness performance

Level 6

Sound insulation performance

Level 4

Airtightness coefficient

Level 4

Variations

Hidden Hinge Side, Inversion Support Block, Hinge Side Combination Set, Angle Driver, Lifting Pad, Hidden Actuator, Handle, Hinge + Window Screen Lock, Slack-preventing Device
