87 SERIES SYSTEM WINDOW

0.00



Product description:

  • Isothermal vertical with 35.3mm heat-insulating strips, effectively prevents heat transfer, and has excellent thermal insulation performance.
  • Split balanced Angle code injection process, improve the wind pressure resistance of the whole window and the overall safety performance
  • Provide fancy color custom design to break the traditional monotony and make the windows become the highlight of home decoration

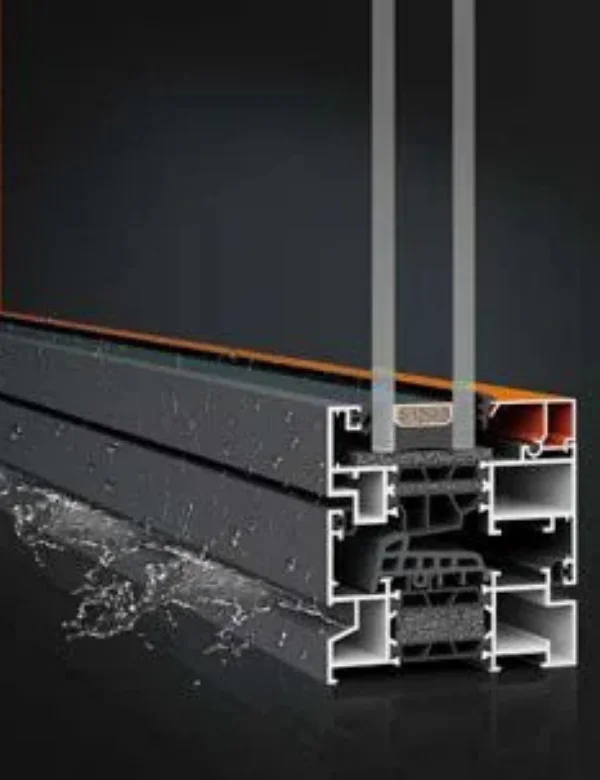

  • 27A hollow thickness, which can select three-glass and two-cavity structure, greatly enhances the sound insulation and heat insulation performance.
  • Doors windows can be made, with glass protection integrated design,it looks noble and elegant and enhances the overall style of the home
SKU: N/A Categories: ,
Description

Constructed with an 87mm thermal break profile for energy conservation. It utilizes concealed hinges and precise German hardware. The design achieves high resistance against harsh weather conditions.

Additional Information
Frame Thickness

1.8mm

Reinforced Thickness

1.8mm

Sash width

500mm-750mm

Sash height

800mm-1400mm

Glass Specification

5+27A+5 double tempered insulating glass

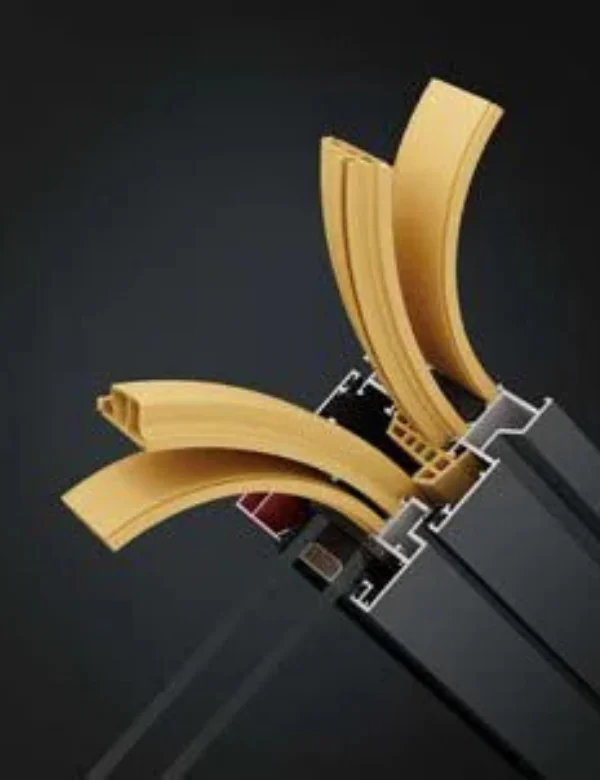

Heat insulation strip

35.3mm

Product function

Inward opening window

Insulation Performance

Level 7

Wind pressure resistance performance

Level 9

Watertightness performance

Level 7

Sound insulation performance

Level 4

Airtightness coefficient

Level 5

Variations

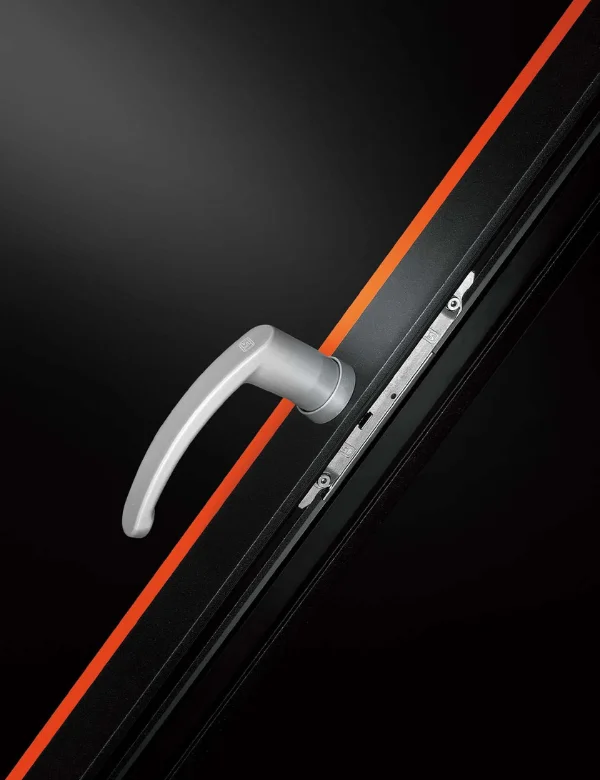

Hidden Hinge Side, LM Lock Seat, Hidden Hinge Side Down, Handle, Tilt Lock Lever, Inward Open And Inward Hopper Driver, Tilt Strike Plate, Angle Driver, Aluminium Alloy Strike Plate, Hinge, Lifting Block
